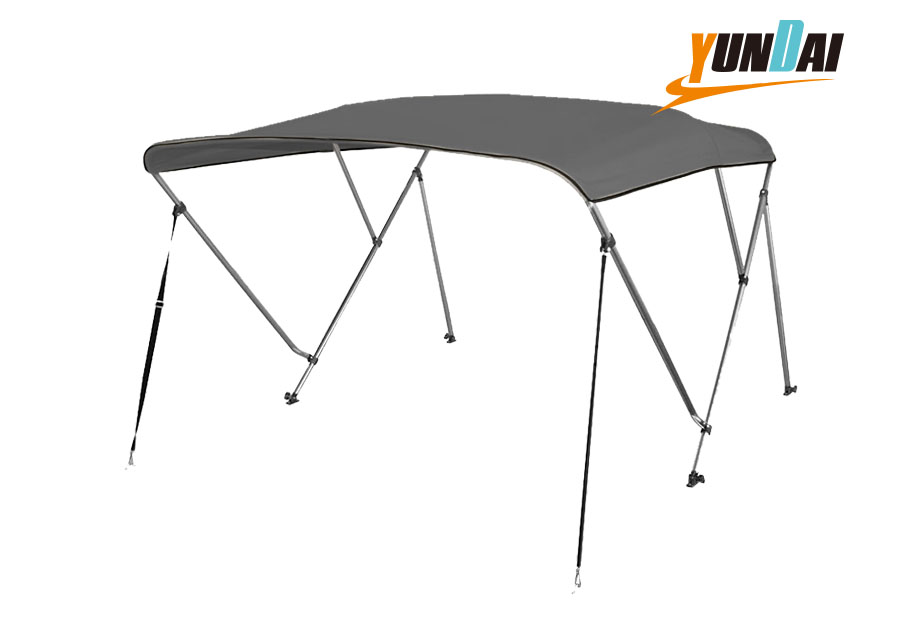

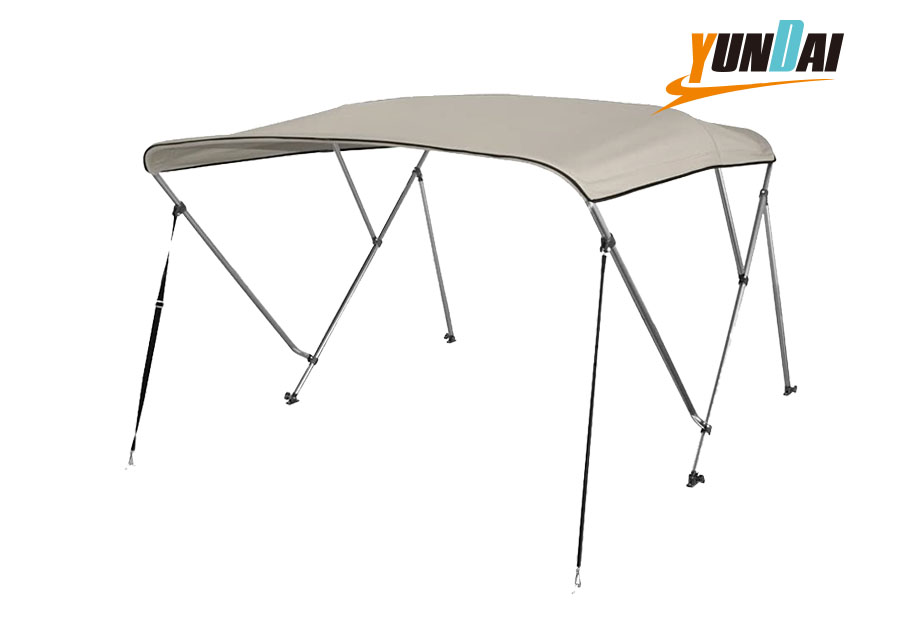

YUNDAI Round-tube 3 Bow Bimini Top


Product Description

 -Made of 600D polyester canvas with double PU Coating, Marine grade

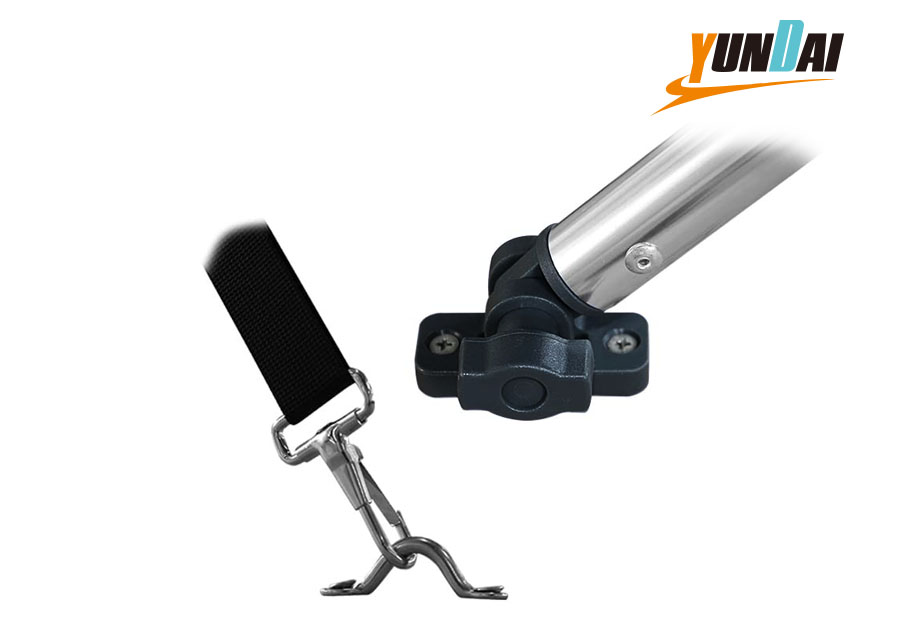

-1" diameter aluminum frame with double-walled main bow legs for maximum strength

and free qucik release mounts

-Two options: 4 adjustable straps or 2 rear support poles with 2 front adjustable straps

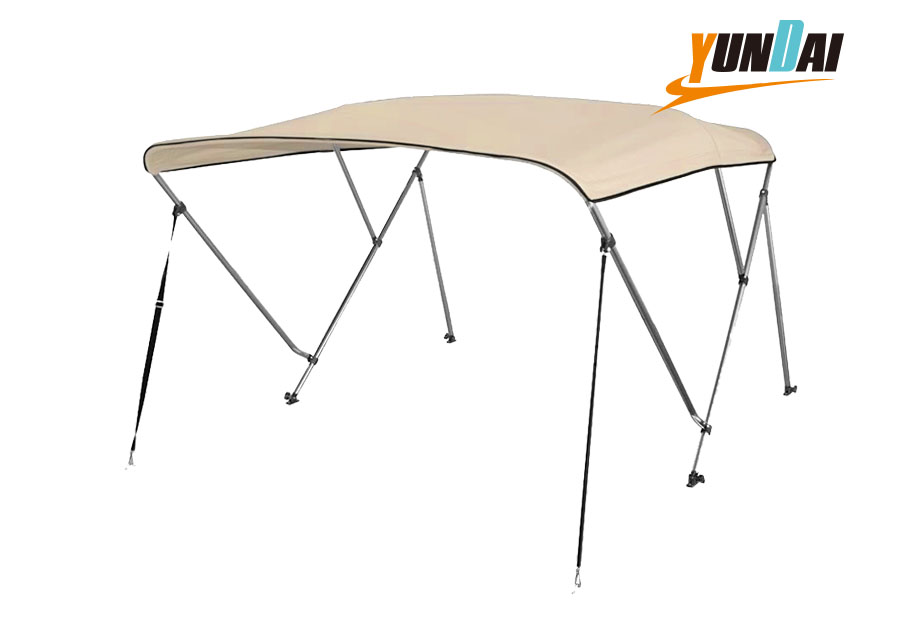

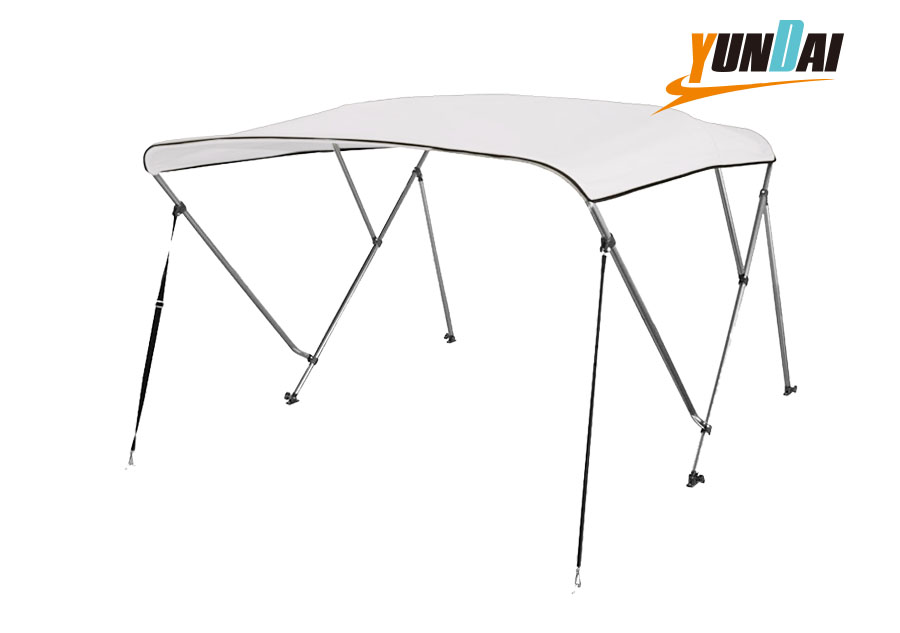

- 10 optional fabric colors: Beige, Black, Red, Charcoal, Green, Light Grey, Navy Blue,

Pacific Blue, Teal, White

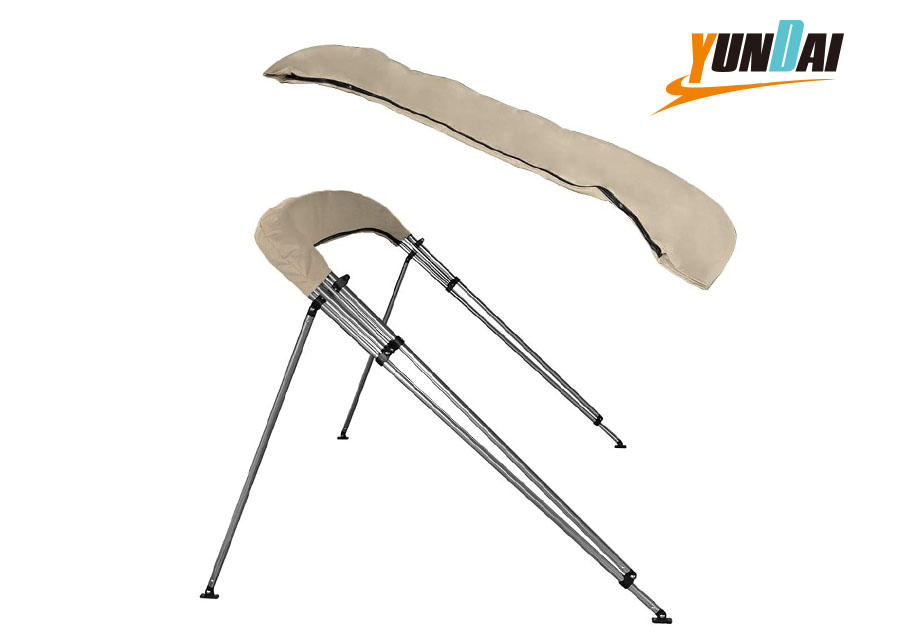

-Includes one coordinated zippered storage boot and all mounting accessories

3 Bow描述.png

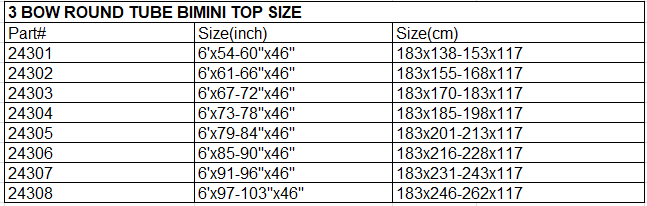

3 Bow尺寸.png

How to select your Bimini Top?


Determine which size top to order is choosing the dimensions that best accommodate

your boat and your requirements. Think about the coverage area when the top is deployed

or opened and also where it falls when it’s closed and folded down at the rear of the boat.

Make sure there is enough space in front of and behind the deployed top to mount eye

straps to secure the hold-down straps or braces.

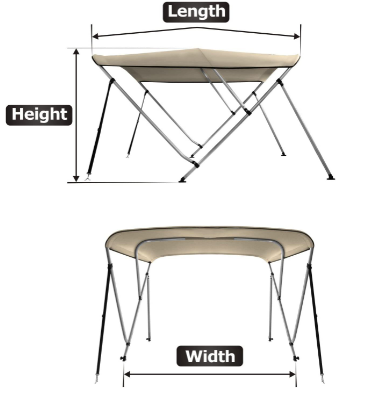

Find the width, determine the pivotal mounting point located on each side of the boat.

The pivotal mounting point will be approximately at the center point of the top on each

side of the boat. After determining where the pivotal mount location will be on each side

of the boat, measure the distance between these mounting points to determine the width

of top you need. To determine the desired height, measure straight up from the pivotal

mounting point while standing inside the boat. This measurement should be the minimum headroom clearance desired.

Note: Bimini Top should never be open when boat speed is over 25 mph.
